Device Name

Rapid steaming and heat build-up in the furnace

Specification Model

HR1200-110/20TP2W

power supply

AC380V 50HZ

rated power

17KW

temperature control accuracy

±1℃

Furnace heating element

6 short wave infrared heating twin tubes 23 * 11 * 300mm

Heating element for insulation pipeline

Ceramic outer wire heating tube 30 * 50 * 350mm

sensor type

Furnace temperature control: K-type thermocouple with a diameter of 1 * 350mm

Internal thermocouple: K-type armored thermocouple with a diameter of 8 * 500mm

Furnace tube specifications

Quartz tube with a diameter of 110 * 900mm

Inner quartz tube with a diameter of 80*3*445mm

Rated temperature of sublimation zone

1100 ℃ (commonly used temperature range of 200-600 ℃)

Preheating temperature zone temperature

600 ℃ (commonly used temperature range of 200-550 ℃)

Recommended heating rate

≤10℃/min

Size of furnace temperature zone

Φ170*200mm

Furnace body size

Length 1440 * Height 516 * Depth 505mm

Furnace weight

About 87KG

control system

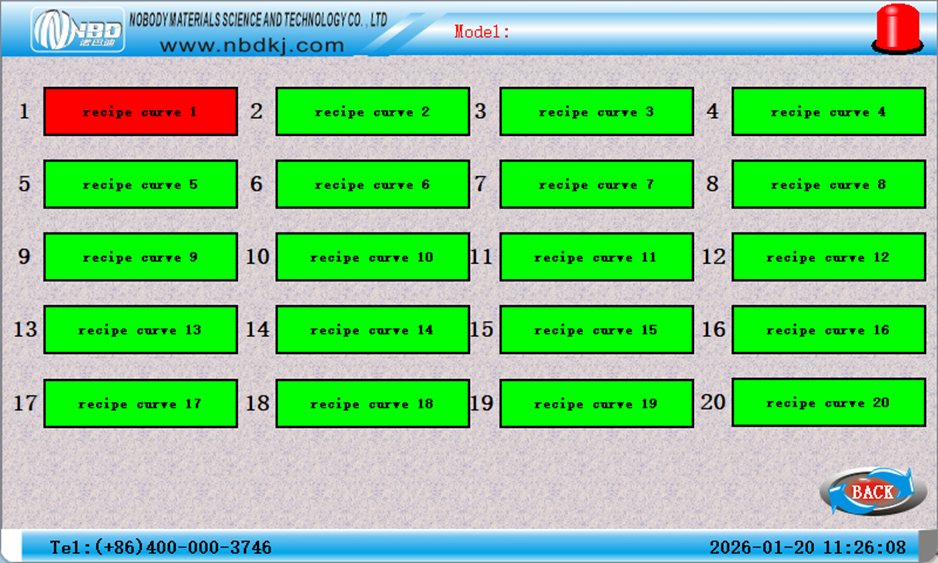

1. Sintering process curve setting: dynamically display the set curve, and the equipment sintering can pre store multiple process curves, each of which can be freely set;

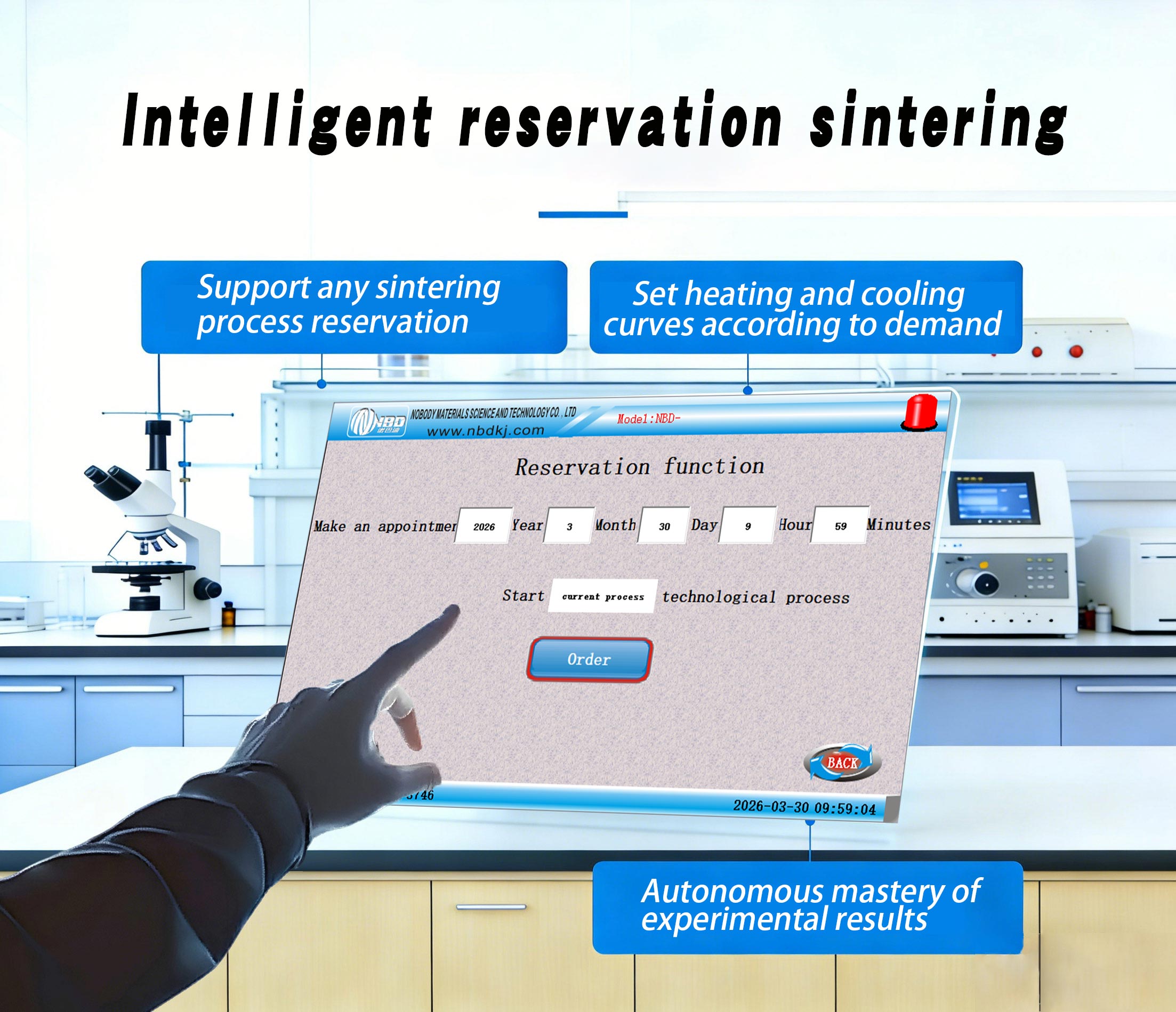

2. Pre order sintering is available to achieve unmanned sintering process curve sintering;

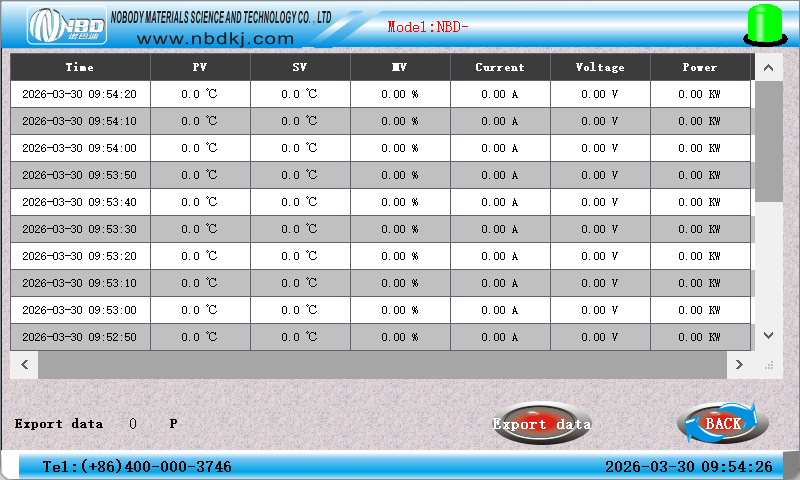

3. Real time display of sintering power, voltage and other information, recording of sintering data, and the ability to export for paperless recording;

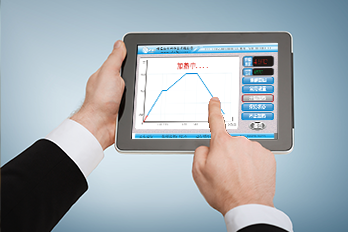

4. Capable of remote control and real-time observation of equipment status;

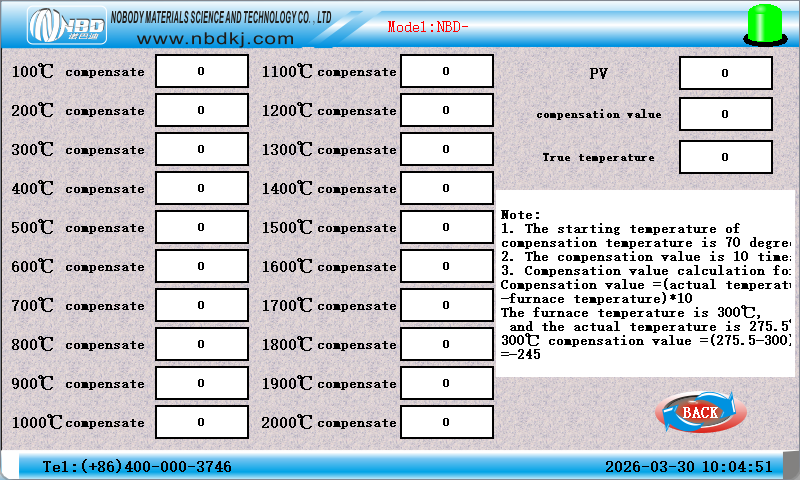

5. Temperature correction: The difference between the main control temperature and the sample temperature is nonlinearly corrected throughout the sintering process.

Appointment sintering

Nonlinear temperature correction

remote control

data storage

sealed system

heating element

Short wave infrared heating twin tube

Weakly corrosive gas preheater (optional)

The whole body is made of 316L material, which can be preheated for various gases and corrosive gases to meet special process requirements, with a maximum temperature of 600 ℃.

Equipment usage precautions

When the furnace temperature of the equipment is ≥ 300 ℃, after moving the furnace, it is forbidden to touch the quartz tube in the original furnace position to avoid injury;

When the furnace temperature of the equipment is ≥ 300 ℃, it is forbidden to open the furnace to avoid injury;

When using the equipment, the pressure inside the furnace tube should not exceed 0.125MPa (absolute pressure) to prevent equipment damage caused by excessive pressure;

When used under vacuum, the operating temperature of the equipment should not exceed 800 ℃.

5. The internal pressure of the gas supply cylinder is relatively high. When introducing gas into the furnace tube, a pressure reducing valve must be installed on the cylinder. It is recommended to purchase a small pressure reducing valve for testing,

The range of the pressure reducing valve is 0.01MPa-0.15MPa, which makes it more precise and safe to use.

When the temperature of the furnace body is higher than 1000 ℃, the furnace tube cannot be in a vacuum state. The pressure inside the furnace tube should be equivalent to atmospheric pressure and maintained at atmospheric pressure;

7. Long term use temperature of high-purity quartz tube ≤ 1100 ℃

During the heating experiment, it is not recommended to close the exhaust and intake valves at the flange end of the furnace tube. If it is necessary to close the gas valve to heat the sample, it is necessary to constantly monitor the reading on the pressure gauge. If the absolute pressure gauge reading is greater than 0.15 MPa, the exhaust valve must be immediately opened to prevent accidents (such as furnace tube rupture).

Service and Support

One year limited warranty with lifetime support (warranty does not include consumable parts such as processing tubes and O-rings, please order replacement parts at the relevant product below).
