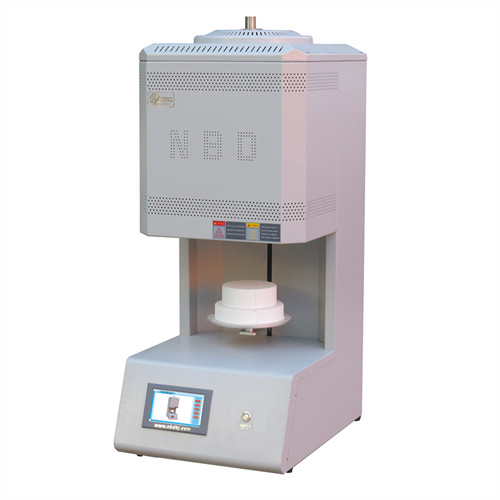

Large capacity bottom-loading furnace

Release time:2019-06-15  Number of views:3587






Equipment introduction:

Large capacity load type sintering furnace, the furnace adopts light alumina refractory insulation material, has excellent thermal insulation performance, and the burning platform adopts lead screw lifting system, which is convenient for the loading of large materials. The equipment is widely used in universities, scientific research institutes, industrial and mining enterprises and other powder metallurgy, ceramic materials, military materials and other heat treatment experiments and production.




















  Configuration

1. The material is burned evenly, and the equipment below 1200 degrees can be equipped with corrosion resistant protective cover to prevent volatilization of the material from corroding the furnace;

2. Silent lead screw lifting platform design, ensure the stability of lifting, avoid material tilt, easy and fast loading;

3. Perfect automatic control ensures the stability of system control and operation;

4. Touch screen operation, intuitive display of temperature curve, make the operation more simple;

Model

NBD-B1500-16TI

NBD-B1700-16TI

NBD-B1200-38TI

Electrical Spec

AC220V   4KW

AC220V   4.5KW

AC380V   4KW

Tmax

1450℃

1650℃

1150℃

Heating rate

≤20℃/min

Chamber size

Φ160*200mm

Φ160*200mm

Φ380*220mm

Control system



1.NBD-101E embedded operating system Chinese and English interchangeable graphical interface, 7 inch true color touch screen input, intelligent man-machine dialogue mode, real-time heating power display, non-linear pattern temperature correction;

2. 15 temperature curves can be pre-stored, and 30 sections of "temperature-time" axis can be set for each curve, avoiding the trouble caused by repeated setting of different experimental processes;

3. It has the functions of over-temperature alarm, broken couple warning, leakage protection and so on.

Temp Accuracy

+/- 1℃

Heating element


High purity silicon carbon rod



High purity silicon molybdenum rod



Molybdenum doped iron chromium aluminum alloy resistance wire

Net weight

85KG

115KG

300KG

Caution

设备炉膛温度≥300℃时,禁止将炉膛,避免受到伤害;

Service

1 year warranty with lifetime support (warranty does not cover consumable parts such as furnace tubes and seals).


Disclaimer:

The product introduction content of this site (including product pictures, product descriptions, technical parameters, etc.) is for reference only. There may be some difference between the stated content and the actual situation due to the delay in updating. Please contact our customer service staff for confirmation. The information provided by this Site does not constitute any offer or acceptance. NOBODY will improve and modify any information on this site from time to time without prior notice.
