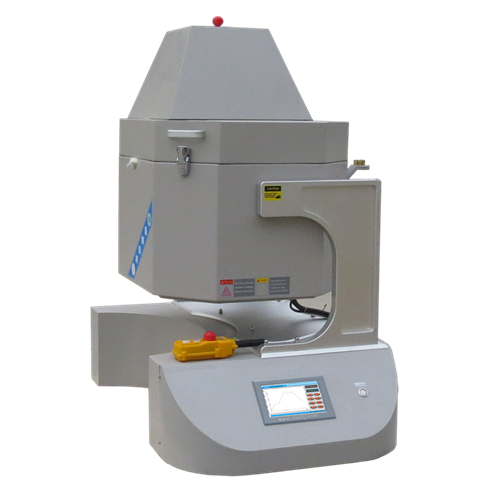

Melting furnace 1500/1700℃

Release time:2017-11-16  Number of views:4381




Equipment introduction:

The equipment is used for melting and casting of metal materials, and has automatic tilt pouring function, which is convenient for casting and forming of investment casting parts under high temperature. The use of fiber refractory insulation material, more energy saving.




















    Configuration

1. Use contactless thyristor module to improve the stability of system control;

2. The use of advanced technology of refractory insulation materials, small heat loss, effectively reduce the use of equipment power;

3. High melting efficiency, good energy saving effect, uniform metal composition;

4. With automatic inclined discharge function, can quickly carry out casting molding operations;

Model

NBD-P1500-2.5LTI

NBD-P1700-2.5LTI

Electrical Spec

AC220V  4KW

AC220V  5KW

Tmax

1450℃

1650℃

Heating rate

≤20℃/min

furnace volume

2.5L

Control system



1.NBD-101E embedded operating system Chinese and English interchangeable graphical interface, 7 inch true color touch screen input, intelligent man-machine dialogue mode, real-time heating power display, non-linear pattern temperature correction;

2. 15 temperature curves can be pre-stored, and 30 sections of "temperature-time" curves can be set for each one to avoid the trouble caused by repeated setting of different experimental processes;

3. It has the functions of over-temperature alarm, broken couple warning, leakage protection and so on.

Dumping mode



Automatic dumping of samples by motor control makes the operation safer and more reliable.

Temp Accuracy

+/- 1℃

Heating element





High purity silicon carbon rod



High purity silicon molybdenum rod

Net weight

75KG

110KG

Cautions

1. When the furnace temperature of the equipment is ≥300℃, do not open the furnace to avoid damage;

2. Slight cracks caused by continuous use of the furnace are normal and do not affect the normal use of the equipment;

Service

1 year warranty with lifetime support (warranty does not include consumable parts).
