1. Use contactless thyristor module to improve the stability of system control;
2. The chimeric gold heating wire in the furnace is distributed in a ring to ensure the temperature uniformity in the furnace;
3. The use of advanced technology of refractory insulation materials, small heat loss, effectively reduce the use of equipment power;
4. Modular mechanism, durable and easy to maintain;
5. Touch screen operation, intuitive display of temperature curve;
6. Other furnace sizes can be customized.

Model

NBD-G1500-12TI

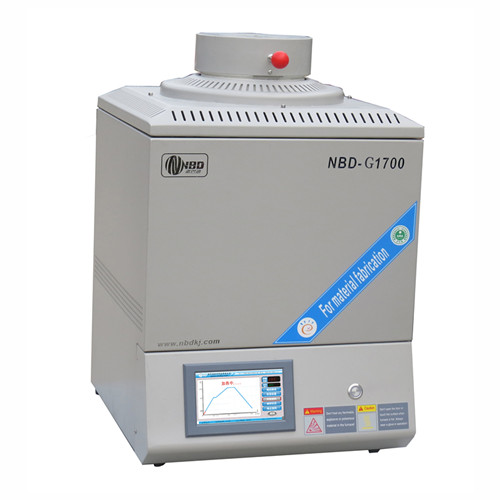

NBD-G1700-12TI

Electrical Spec

AC220V    2.3KW

AC220V    2.8KW

Tmax

1450℃

1650℃

Heating rate

≤20℃/min

Chamber size

Φ120*160mm

Φ120*160mm

Control system

1.NBD-101E embedded operating system Chinese and English interchangeable graphical interface, 7 inch true color touch screen input, intelligent man-machine dialogue mode, real-time heating power display, non-linear pattern temperature correction;

2. 15 temperature curves can be pre-stored to avoid the trouble caused by repeated Settings of different experimental processes;

3. With high temperature alarm, broken couple warning, leakage protection and other functions.

Temp Accuracy

+/- 1℃

Heating element

High purity silicon carbon rod

High purity silicon molybdenum rod

Net weight

90KG

Cautions

1. When the furnace temperature of the equipment is ≥300℃, do not open the furnace to avoid damage;

2. Slight cracks caused by continuous use of the furnace are normal and do not affect the normal use of the equipment;

Service

1 year warranty with lifetime support (warranty does not include consumable parts).
